Mechanism-Structured
Intensity, chromaticity, spatial non-uniformity, temporal variation, and dynamic shadows.
Illumination-Centric Diagnostic Benchmark
LumiBench
Benchmarking Illumination Robustness in Robotic Manipulation Policies
A controlled, mechanism-structured evaluation of how lighting changes alter robot-policy behavior.
5illumination mechanisms
9simulated perturbations
5 × 10policies × RoboTwin tasks
RealARX physical validation
Motivation
Abstract
Illumination shifts can substantially degrade robotic manipulation policies, yet existing benchmarks typically treat lighting as a single perturbation factor. LumiBench instead organizes illumination variation by its dominant physical mechanism and evaluates it through paired nominal–perturbed rollouts.
For representative mechanisms, LumiBench adds within-condition severity sweeps to distinguish sensitivity to perturbation onset from degradation under increasing strength. The benchmark is instantiated in RoboTwin 2.0, evaluates five representative policy families across ten tasks, and is complemented by controlled physical experiments.
Paired Evaluation
Task semantics, geometry, robot state, camera setup, checkpoint, and initialization are held fixed while illumination changes.
Severity + Physical Validation
Ordered severity sweeps expose response regimes, while controlled real-world trials test whether selected vulnerabilities persist.

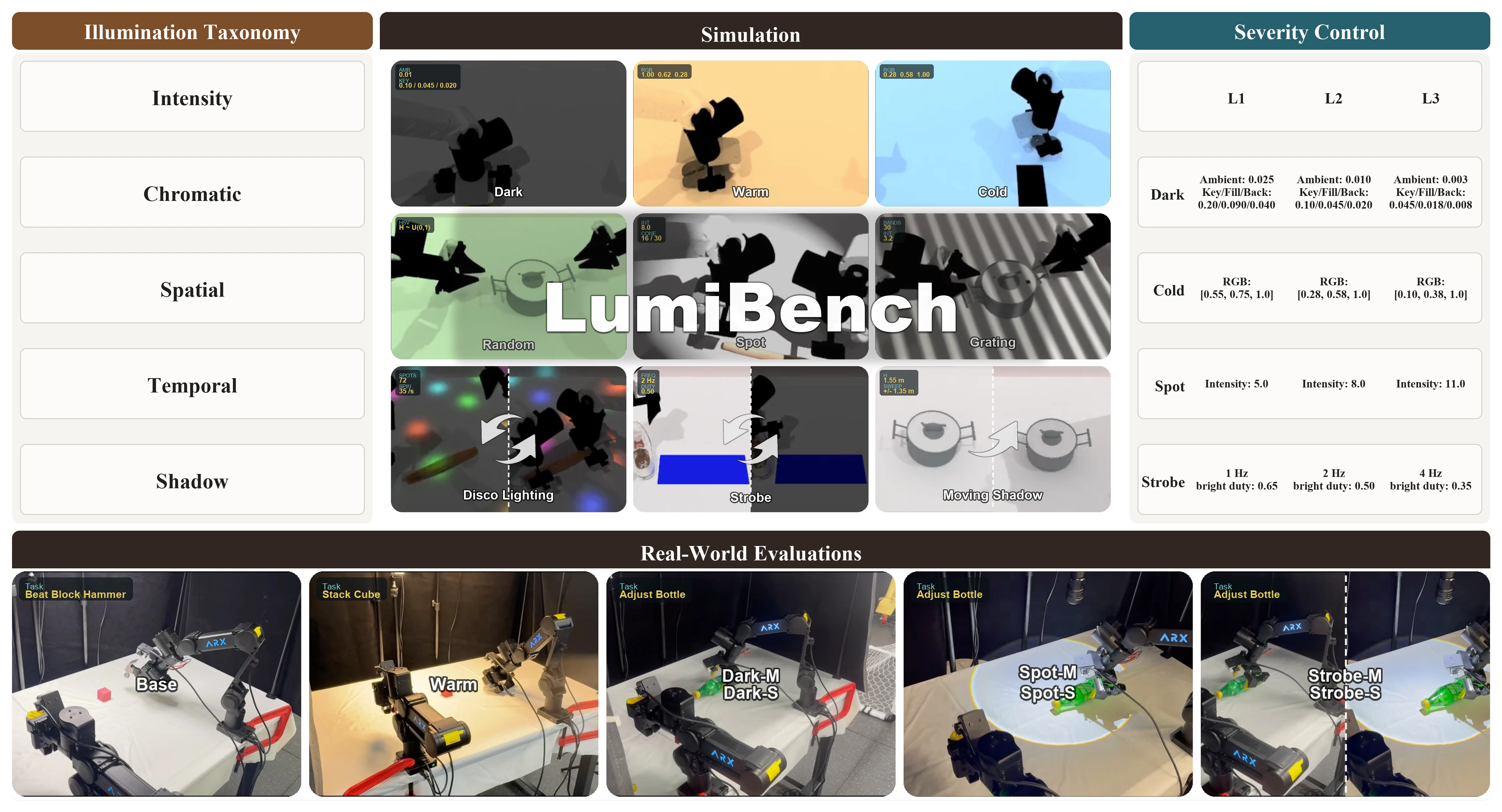

Evaluation Space
Benchmark Design
LumiBench treats robustness as a controlled intervention problem: what changes when the illumination condition changes, and everything else is kept as constant as possible?
Intensity
Global illumination strength.
Dark
Chromaticity
Light-source color characteristics.
WarmCold
Spatial
Non-uniform illumination structure.

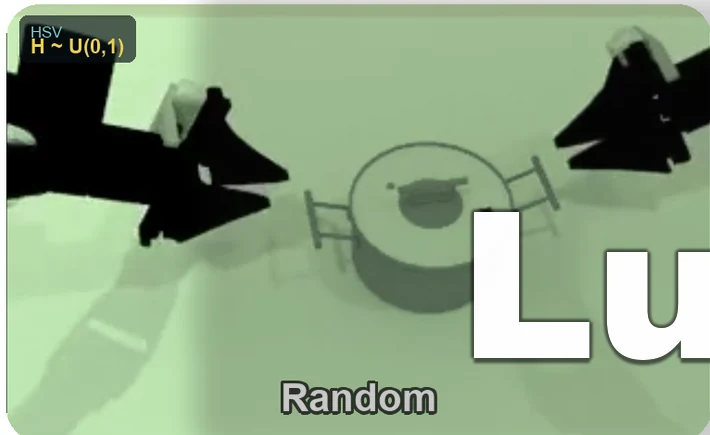

RandomSpotGrating

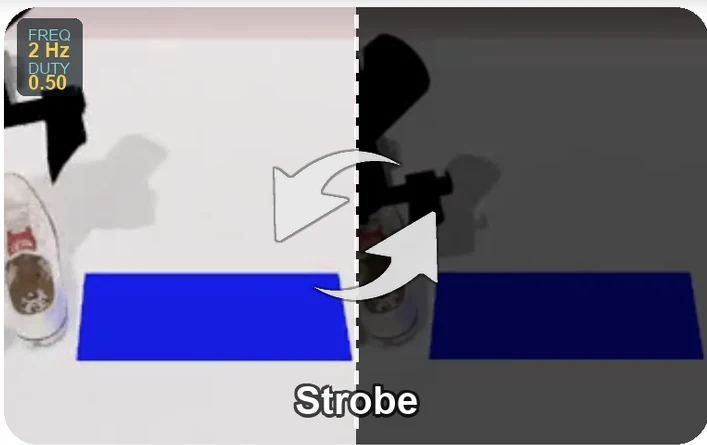

Temporal
Time-varying illumination.
Strobe
Shadow
Geometry-coupled moving shadows.
Moving Shadow
Broad illumination evaluation
One nominal Base condition plus nine controlled illumination perturbations across the five mechanisms. Disco Lighting serves as a composite stress condition.
Severity-controlled evaluation
Dark, Cold, Spot, and Strobe are swept over three ordered severity levels with physically interpretable controls.
Controlled physical evaluation
Selected illumination conditions are recreated on an ARX X5 platform to test whether simulation-identified sensitivity patterns persist.
Simulation
Illumination Conditions
Nine scene-level interventions; no image-space post-processing.
Ordered Perturbation Strength
Severity-Controlled Evaluation
The benchmark separates the first cost of introducing a perturbation from additional degradation as that perturbation becomes stronger.

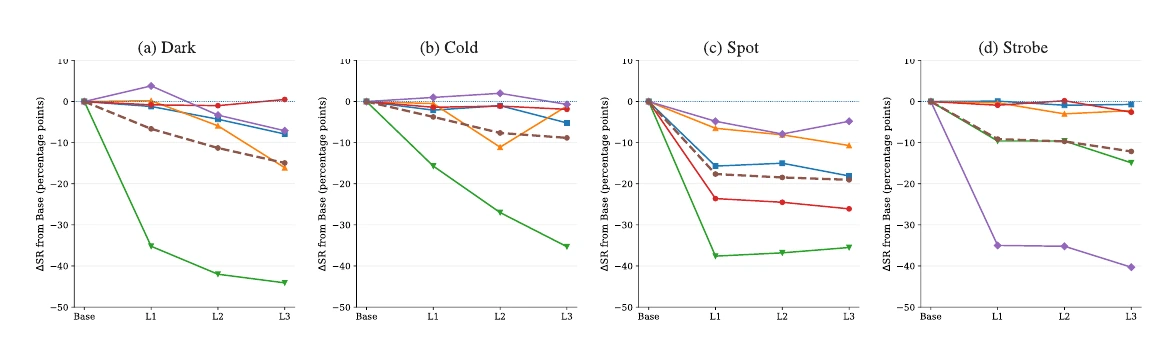

Mean success rate across five policies × ten tasks
DarkL0 is Base. L1–L3 are ordered within each mechanism and are not assumed to be quantitatively comparable across mechanisms.
Policy-specific severity response. The manuscript reports progressive, onset-dominated, and strongly policy-specific response patterns.
Evaluation

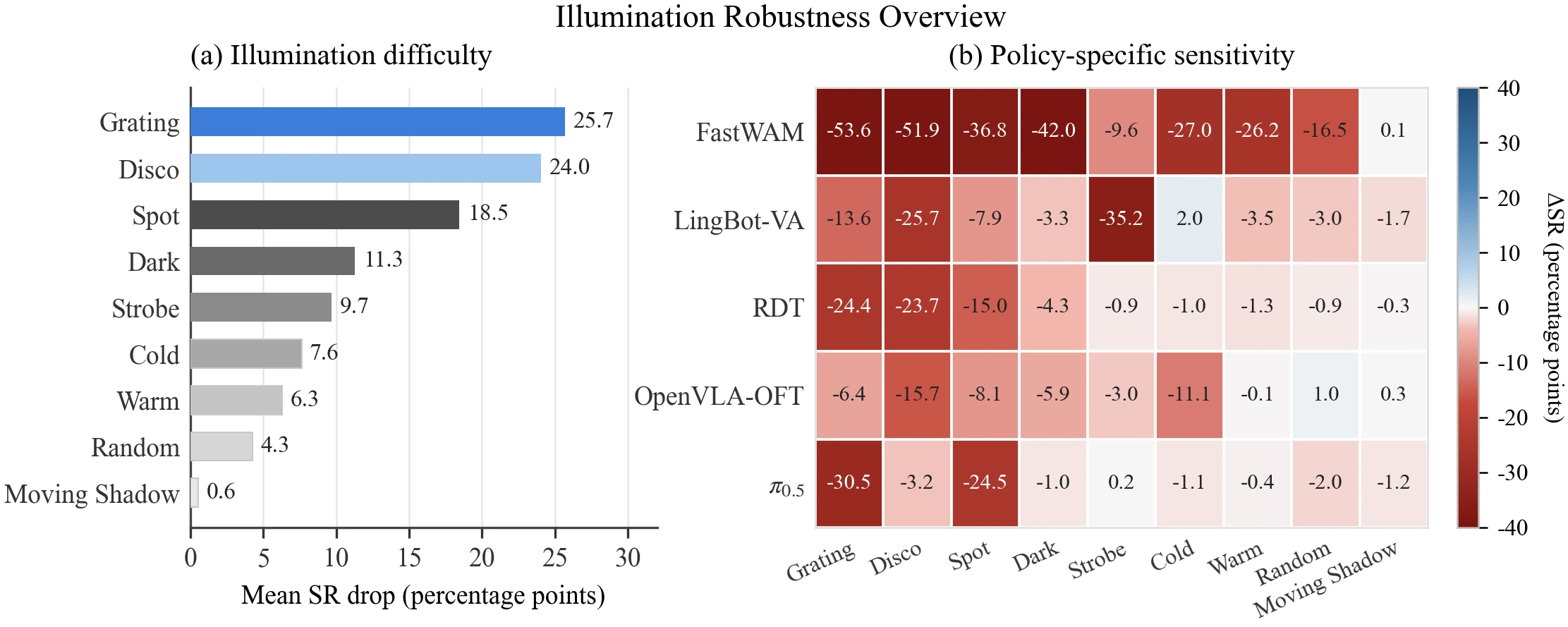

Illumination Robustness Is Not a Single Number
Different policies fail under different lighting mechanisms, and nominal task success does not reliably predict illumination robustness.

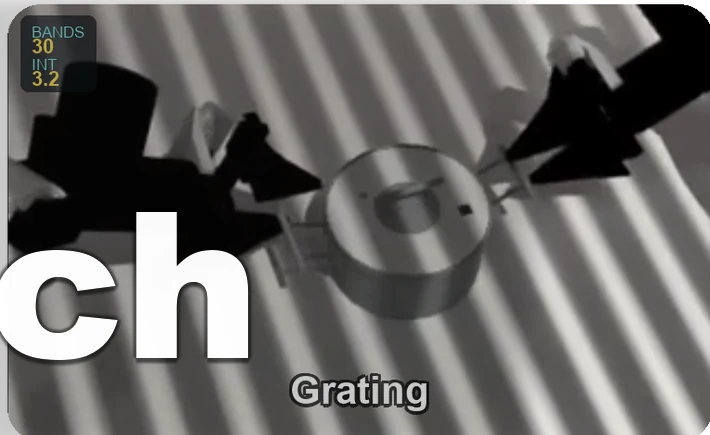

Grating
Largest mean success-rate drop under the canonical benchmark settings.

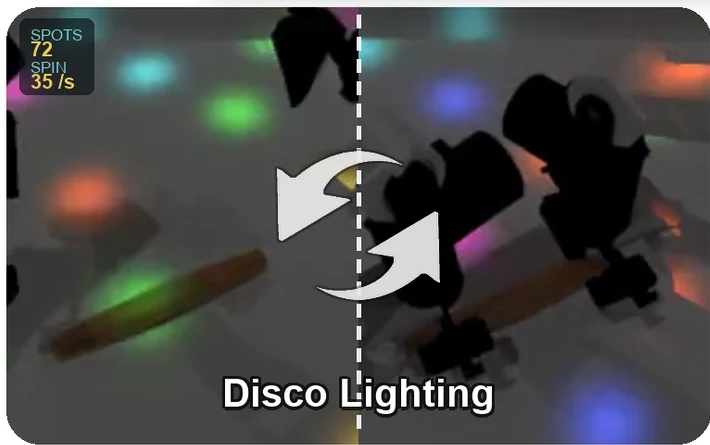

Disco
Composite chromatic, spatial, and temporal variation is also strongly disruptive.
Spot
Localized spatial non-uniformity causes a large average drop and is reproduced in physical tests.

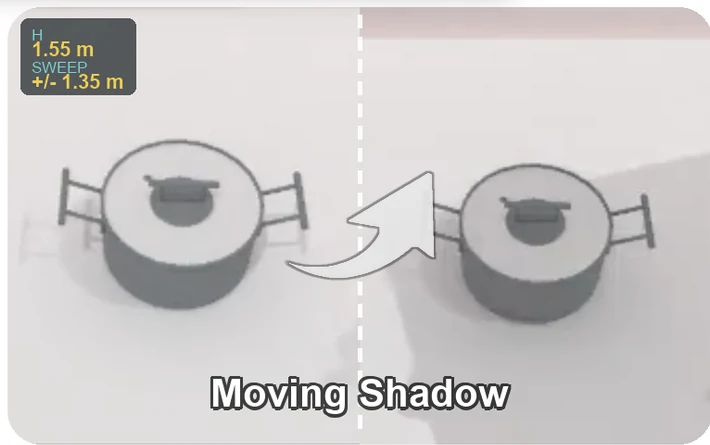

Moving Shadow
Nearly harmless on average at the selected canonical setting, despite other lighting shifts being damaging.
Policy Summary
Base performance and mean retention
Mean retention is the average fraction of Base performance retained across the nine perturbations.
| Policy | Base SR (%) | Mean retention (%) | Example sensitivity |
|---|---|---|---|
| RDT | 42.6 | 81.3 | Spatial + composite conditions |
| OpenVLA-OFT | 46.7 | 88.3 | Broad, relatively mild sensitivity |
| FastWAM | 54.3 | 46.1 | Large drops across many mechanisms |
| π0.5 | 73.9 | 90.4 | Mainly spatial non-uniformity |
| LingBot-VA | 48.7 | 79.0 | Temporal / composite sensitivity |
These differences are observational benchmark results; the evaluation does not isolate architecture, pretraining data, or fine-tuning procedure as causal factors.
Qualitative Example
Lighting changes can alter closed-loop behavior

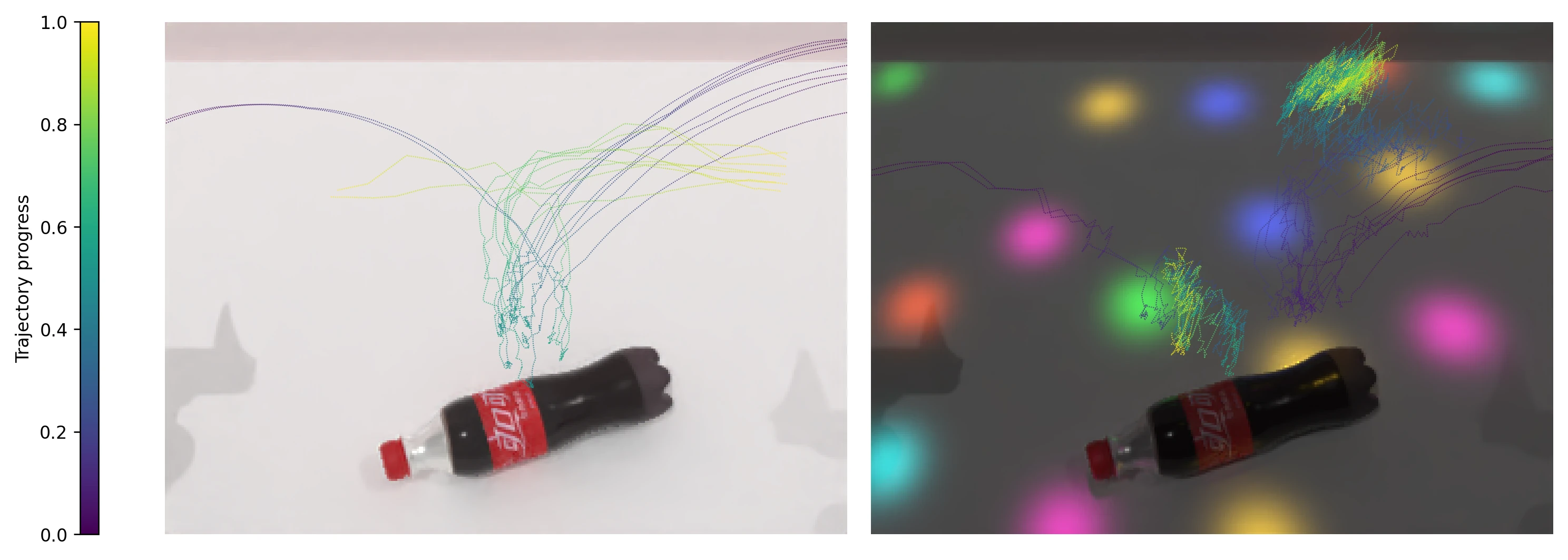

On Adjust Bottle, matched initial conditions under Base and Disco Lighting lead to visibly different end-effector trajectories, illustrating that illumination shift can propagate from perception into action.
Controlled Physical Evaluation
Selected Vulnerabilities Persist Under Real Lighting

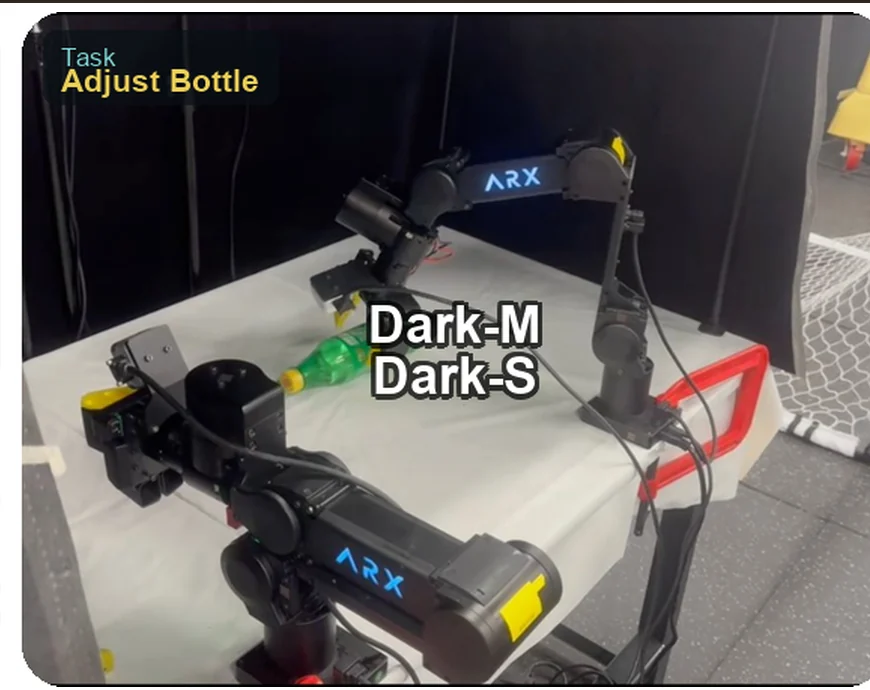

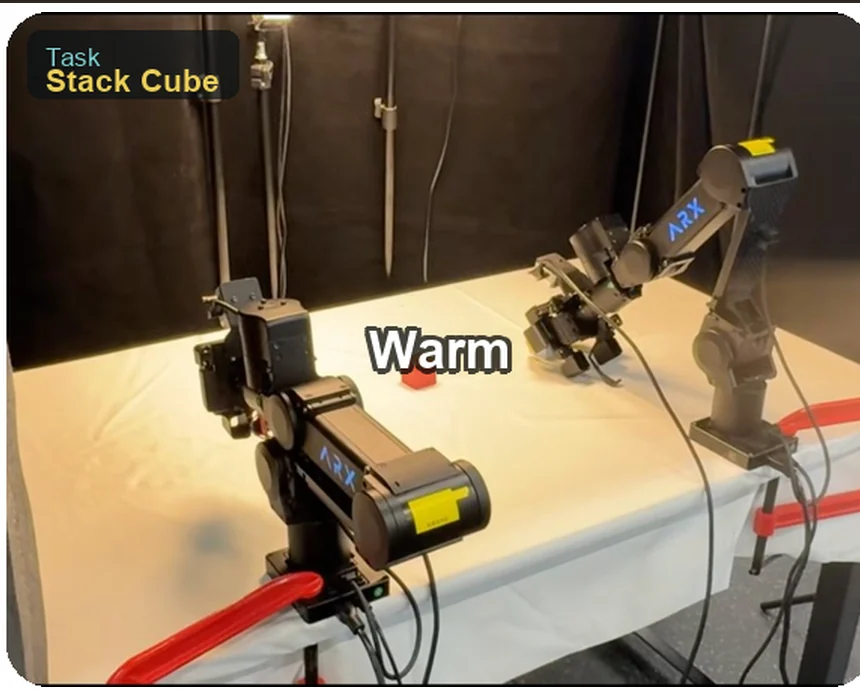

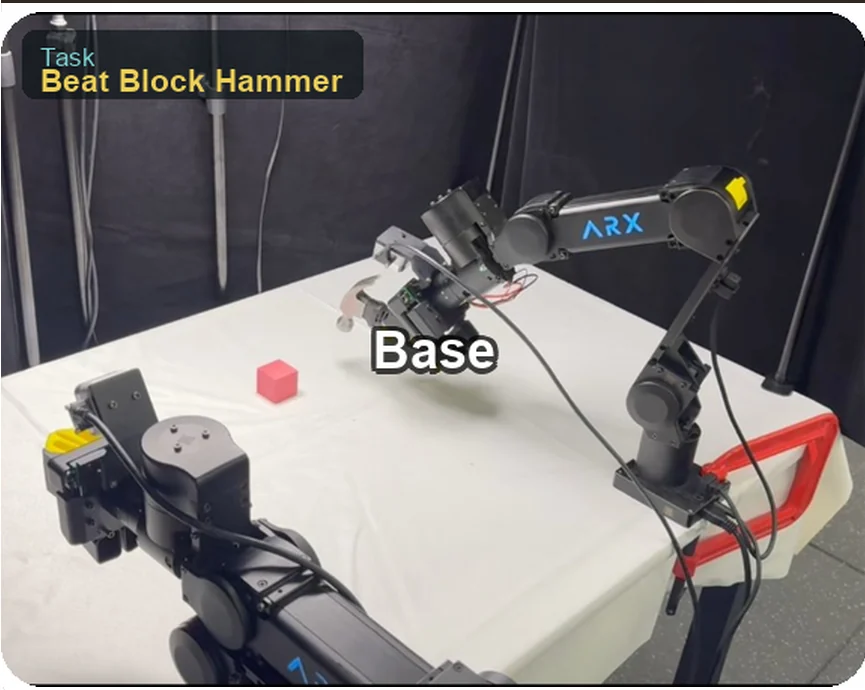

Physical tests use an ARX X5 platform, fixed camera poses, disabled automatic exposure and white balance, and 16 trials per policy–task–condition configuration.
0/16
FastWAM · Adjust Bottle
After 16/16 Base success, all trials fail under Dark, Spot, and localized Strobe in the reported physical setup.
0%

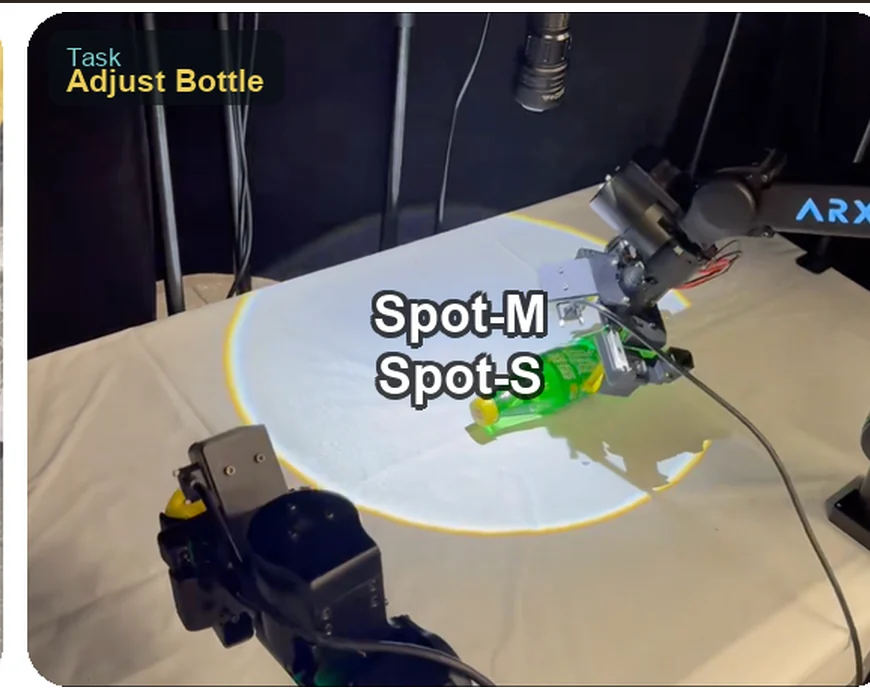

π0.5 · Severe Spot
Severe Spot reduces all three evaluated π0.5 physical tasks to 0/16 success.
≠

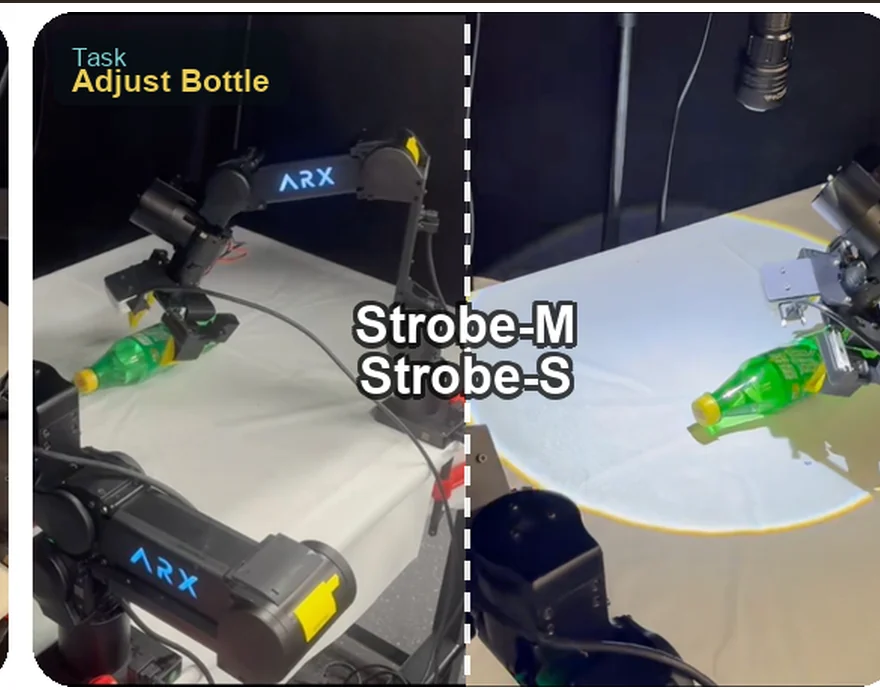

Strobe caveat
The physical Strobe uses intermittent switching of the same localized light as Spot, so it is a controlled stress condition—not a mechanism-matched realization of simulated global Strobe.
Physical Trials
Successful trials out of 16
| Policy | Task | Base | Warm | Dark-M | Dark-S | Spot-M | Spot-S | Strobe-M | Strobe-S |
|---|---|---|---|---|---|---|---|---|---|
| π0.5 | Adjust Bottle | 16/16 | 14/16 | 14/16 | 13/16 | 1/16 | 0/16 | 4/16 | 0/16 |
| Beat Block Hammer | 14/16 | 15/16 | 1/16 | 0/16 | 0/16 | 0/16 | 1/16 | 0/16 | |
| Stack Cube | 10/16 | 12/16 | 8/16 | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 | |
| FastWAM | Adjust Bottle | 16/16 | 14/16 | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 |
| Beat Block Hammer | 16/16 | 16/16 | 6/16 | 7/16 | 0/16 | 0/16 | 0/16 | 0/16 | |
| Stack Cube | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 | 0/16 |
Stack Cube for FastWAM is at 0/16 already under Base and therefore does not support a meaningful illumination-robustness comparison.
